Maxbright Display Media (Shenzhen) Co.,Ltd.
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Maxbright |
| Certification: | CE |
| Model Number: | T550EDCP |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Pearl cotton shock absorption + carton + pallet packaging |
| Delivery Time: | 4~5 weeks |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / month |
| Panel: | A-Si Active Matrix TFT-LCD | Resolution: | 1920 X 1080 |
|---|---|---|---|
| Brightness: | 2000 - 2500 Nits | Power Consumption: | 450W |
| Operating Voltage: | 100 - 240 VAC 50/60Hz | Operating Temperature: | -20C -- 50C |
| Highlight: | outdoor digital signage displays,outdoor lcd advertising display |
||

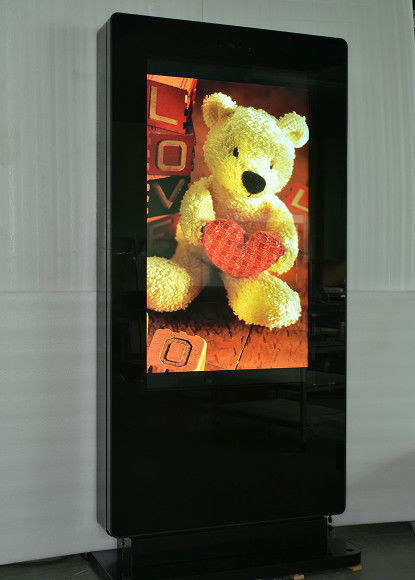

Maxbright 55" Outdoor High Brightness Advertising Totem
LED array backlight enhanced
Model:T550EDCP
FEATURES:
Active Matrix TFT-LCD Display
High Brightness 2000-2500 nits, Sunlight Viewable
1920 x 1080 Max. Resolution
Aspect Ratio: 9:16 in Portrait mode enabled
Wide Viewing Angles 178 deg. (L/R/U/D)
Wide operating temp range, -30 ～ 50o C
Media player or mini-PC for content playback
Waterproof IP54 enclosure option
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 680.4 x 1209.6 mm portrait orientation |
| NATIVE RESOLUTION | 1920 x 1080 RGB |
| PIXEL PITCH | 0.630(H) x 0.630(V) mm |
| COLOR | 16.7 M, 8 bits depth |
| HORIZONTAL FREQ. | 57.3KHz ~ 70KHz |
| VERTICAL FREQ. | 47Hz ~ 63Hz |
| BRIGHTNESS | 2000-2500 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1300:1, Dynamic contrast ratio: 10000:1 |
| DIMMING | Auto-dimming by Light Sensor, 100% to 10% |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 4.5ms |
| INTERFACE | VGA, AV, USB, HDMI x 2, RS232 for Remote OSD |
| MEDIA PLAYER | Media Player (RK3288) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 2000nits/360W, 2500 nits/450W |
| STANDBY MODE | 5 Watt or less |
|
ACCESSORIES
|
AC Power Cord, Remote Controller HDMI, VGA, Composite, cable x 1 |
| TOUCH | G+G Projective CAP, 10 points with USB controller |
| OPERATING | Mini PC: D2550 Dual Core 1.86GHz, 2GB DDR2 |
| (option) | 500GB HDD, 5 x USB ports, 1 x RJ45 |
| DIMENSION | 2020(H) x 960(W) x 220(D) mm w/o Air-Con, |
| WEIGHT | 185 Kg approximate. |
| ENCLOSURE | Iron Sheet folded, Outdoor Powder Coating, IP65 |
| COOLING | By cooling fans controlled by MCU for outdoor |
| 600W Mini air-conditioner option for harsh outdoor | |
|
ENVIRONMENTAL
|
Operating Temperature -10-50C, Wide temp. -30-50C (option) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60C | |
| Storage Humidity 5%-90% | |
| WARRANTY | One year |
